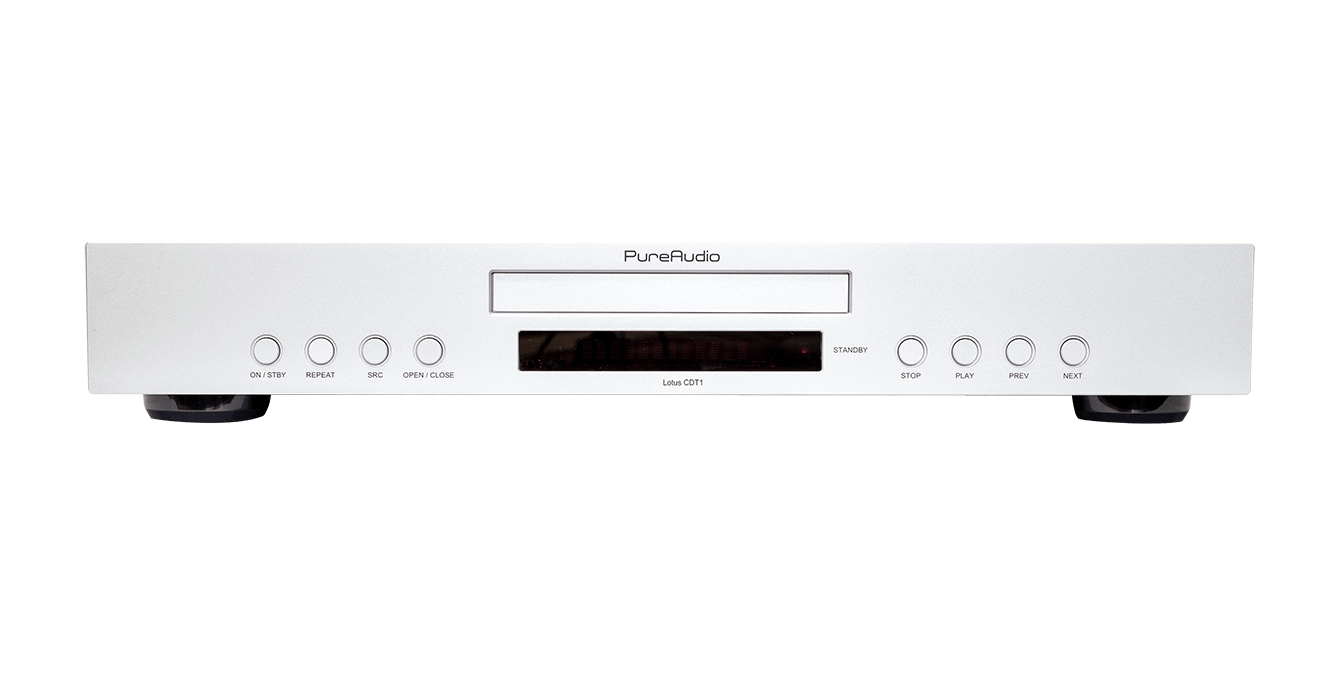

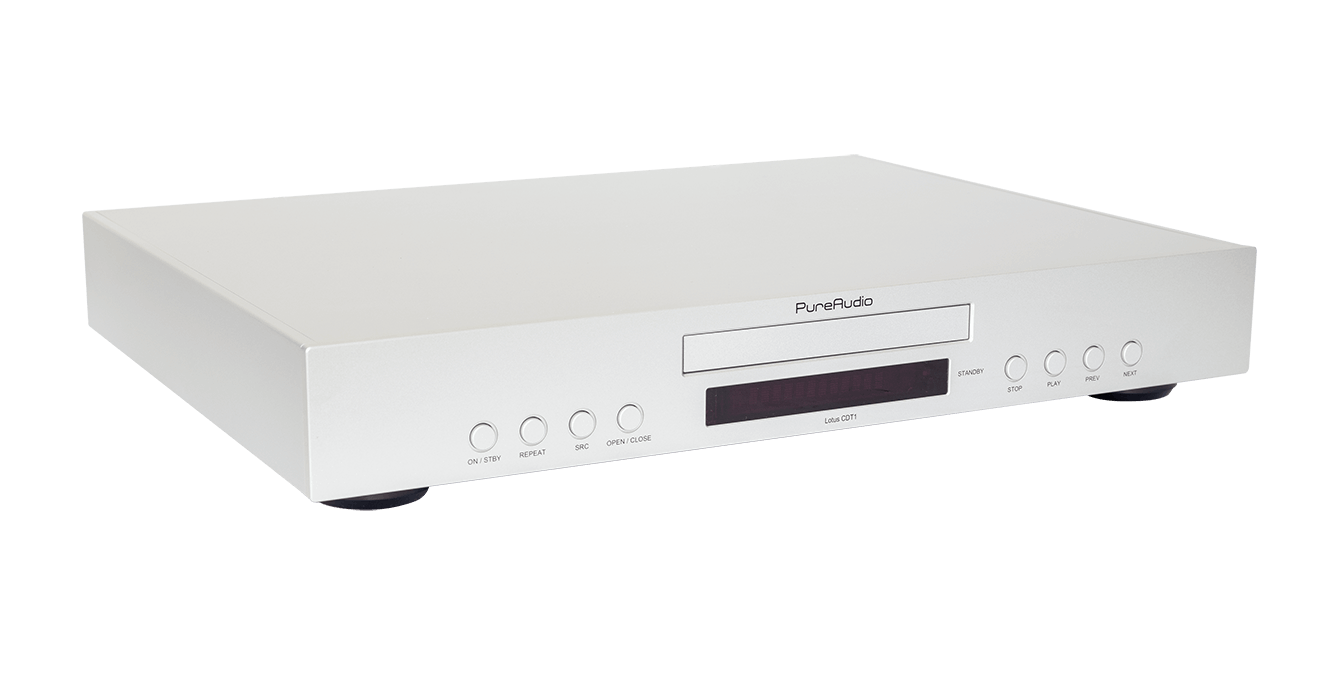

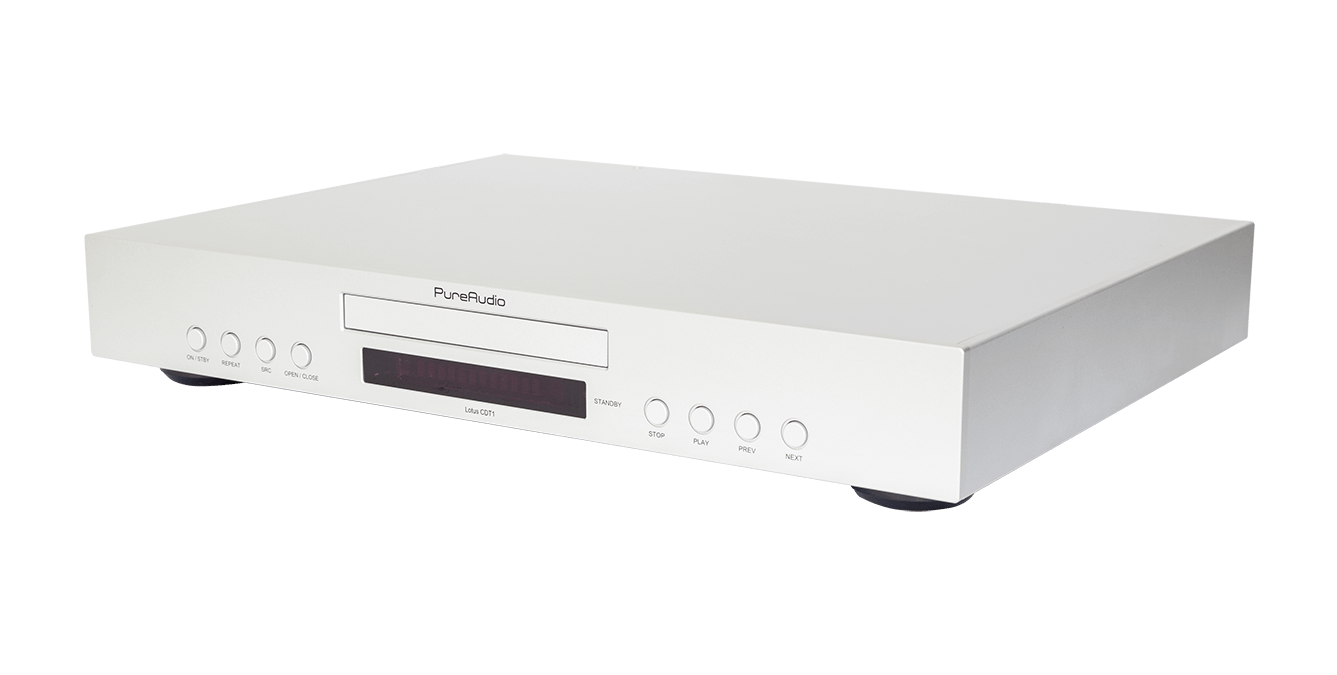

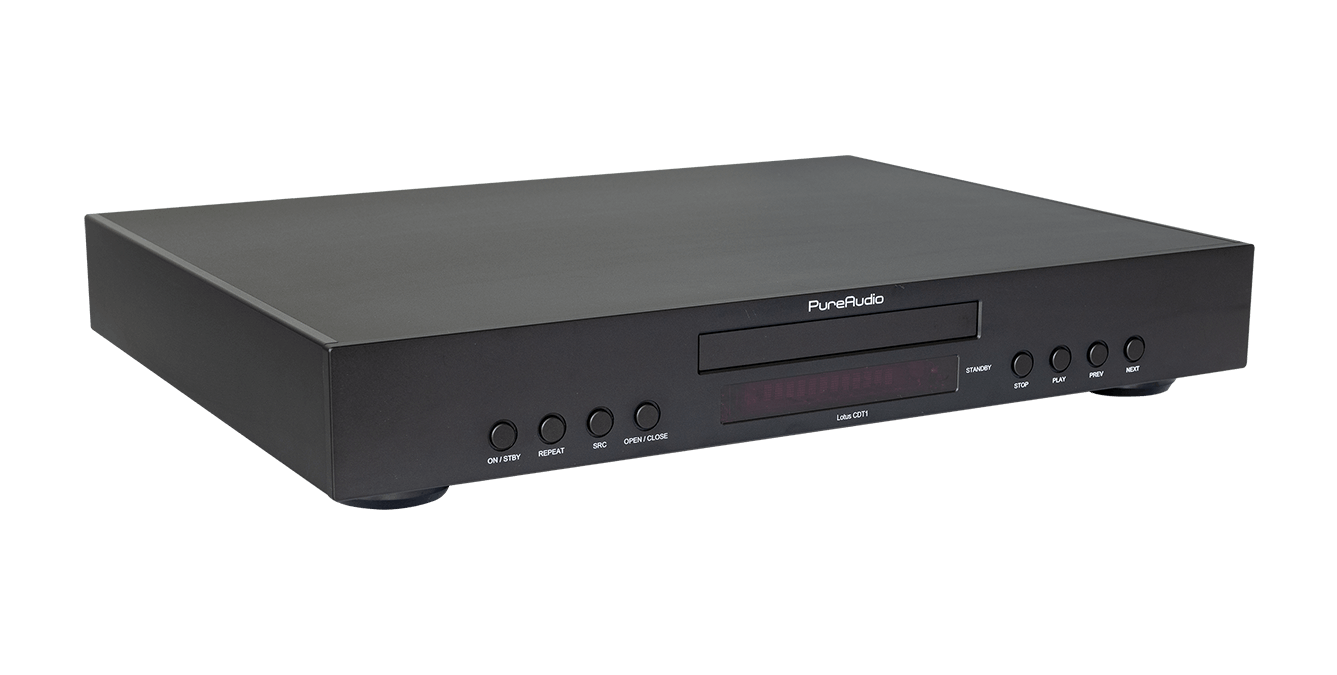

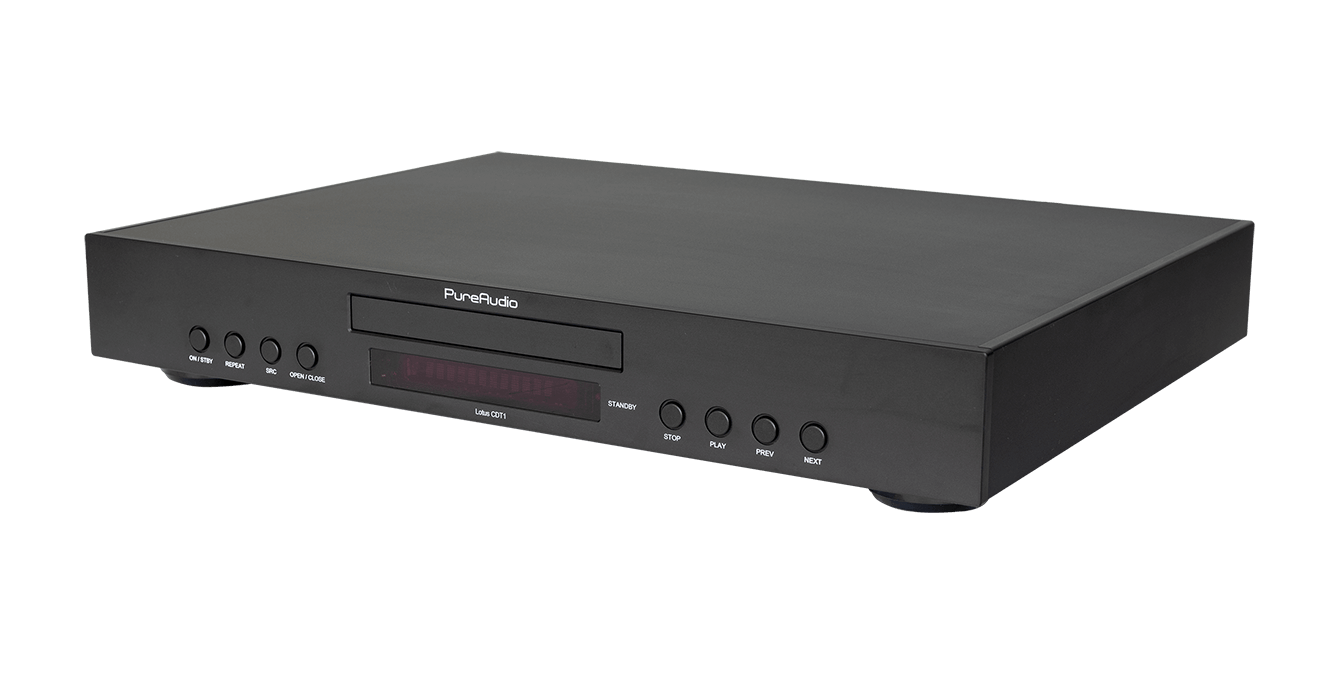

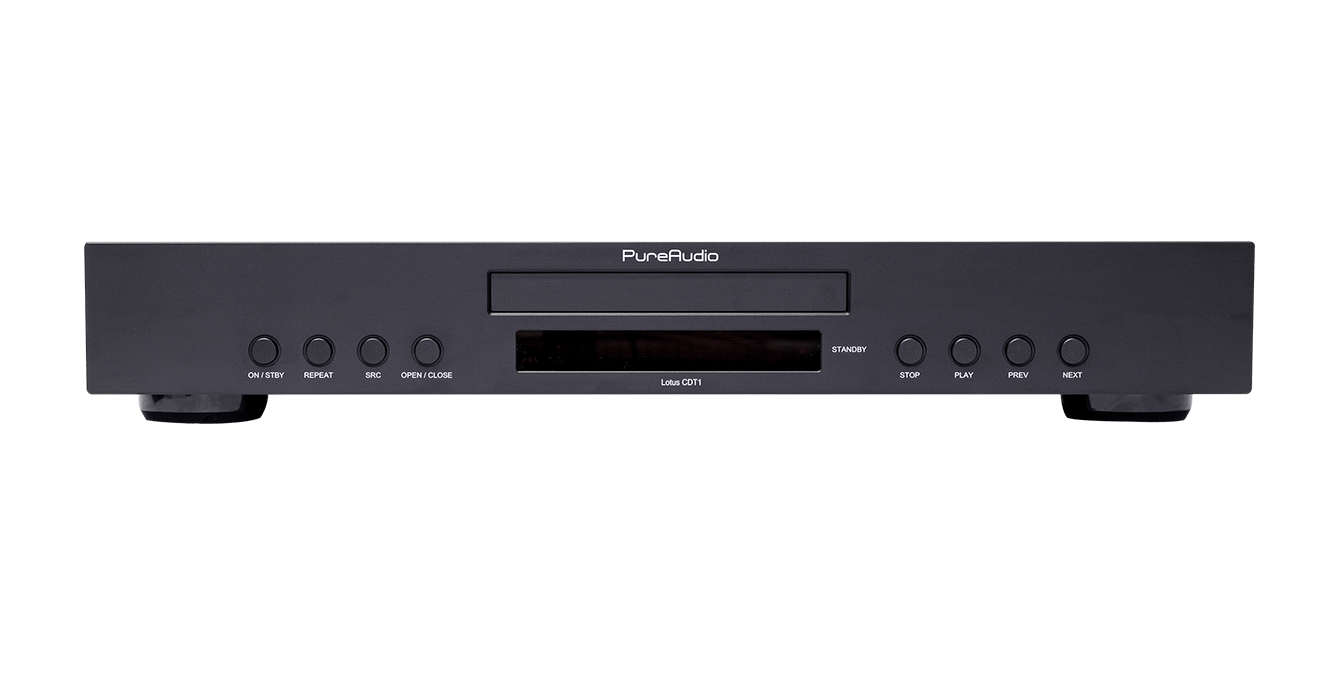

The Lotus CDT1 is a highly accurate professional CD transporter featuring a powerful processor that provides up-sampled conversion that exceeds original CD sound quality. Only digital output matters, So that the whole system can focus on the transmission of digital signals, and there is no need to place cheap DACs for analog output to affect the overall performance. We used a CD Loader designed by StreamUnlimited to design this transport, They used to work in Philips development, where many of the CD players and mechanisms were designed, We will use our years of experience and technology to take your music listening to another level with their designed CD Loader.
1. Using the CD Loader system developed by StreamUnlimited.
2. The low jitter receiving chip processes the output signal of CD Loader.
3. One low phase noise/low jitter clock supply for CD Loader.
4. Three low phase noise/low jitter clocks are provided to the SRC chip to upsample 44.1KHz to a higher sampling rate.
5. Three groups of independent voltage regulators are used for CD Loader and digital circuit respectively.
6. Coaxial output with a dedicated isolation transformer to isolate the ground loop from the D/A converters.
7. Multiple standard digital output interfaces and low jitter IIS output.

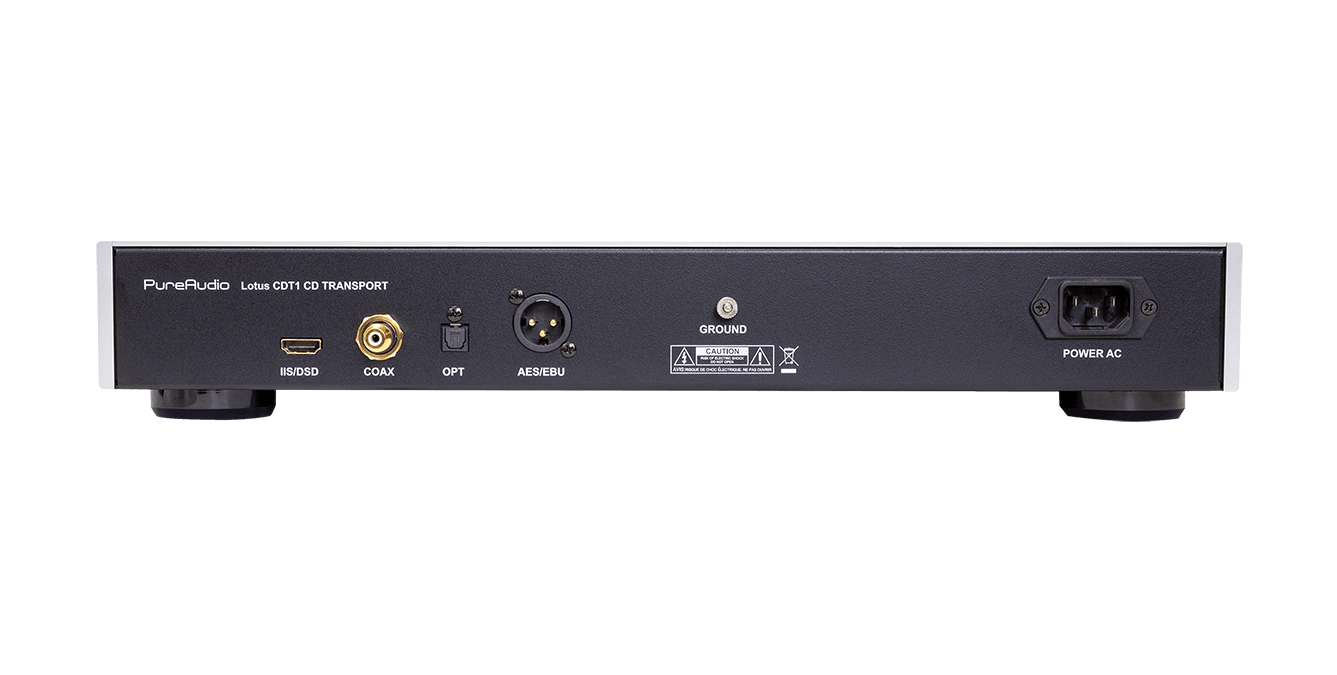

DIGITAL OUTPUTS
• IIS/DSD : Supports PCM 44.1KHz ~ PCM 384KHz and DSD 256 ( 11.2MHz ).
• COAXIAL : Supports PCM 44.1KHz ~ 384KHz / DOP 64 and 128 .
• OPTICAL : Supports PCM 44.1KHz ~ 192KHz / DOP 64.
• AES/EBU : Supports PCM 44.1KHz ~ 384KHz / DOP 64.
NOTE1 : DOP ( DSD over PCM ).
NOTE2 : DSD 64 = DOP 64 = DSD 2.8MHz.
DSD 128 = DOP 128 = DSD 5.6MHz.
DSD 256 = DSD 11.2MHz.
NOTE3 : SRC ( Sample Rate converter )
GENERAL
• Power Supply : AC voltage selector switch at the bottom of the unit, 115V or 230V.
• Dimensions [W x H x D] : 430 mm x 55 mm x 315 mm.
• Weight : 4.8 Kg
• Power consumption : 10.8W ( Standby under 0.9W )
