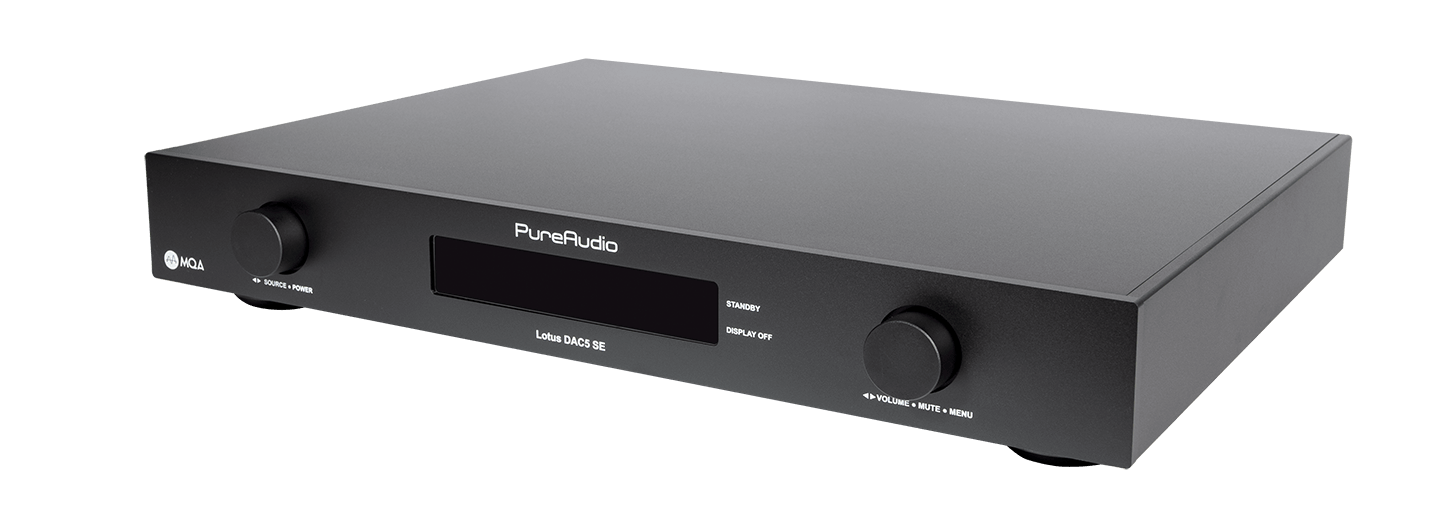

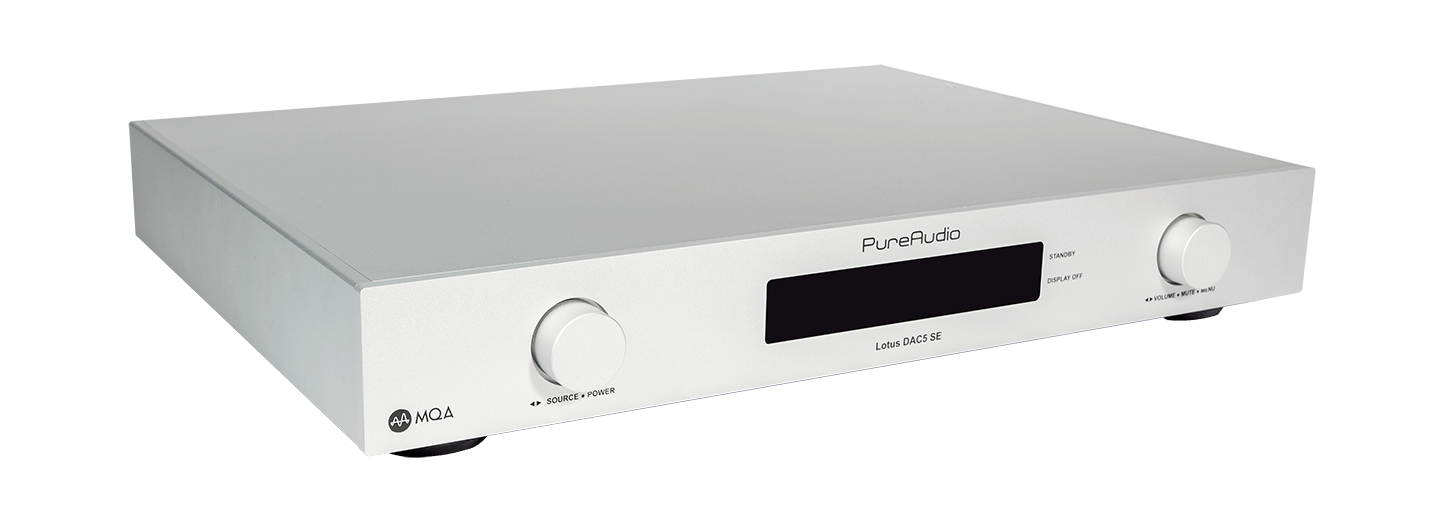

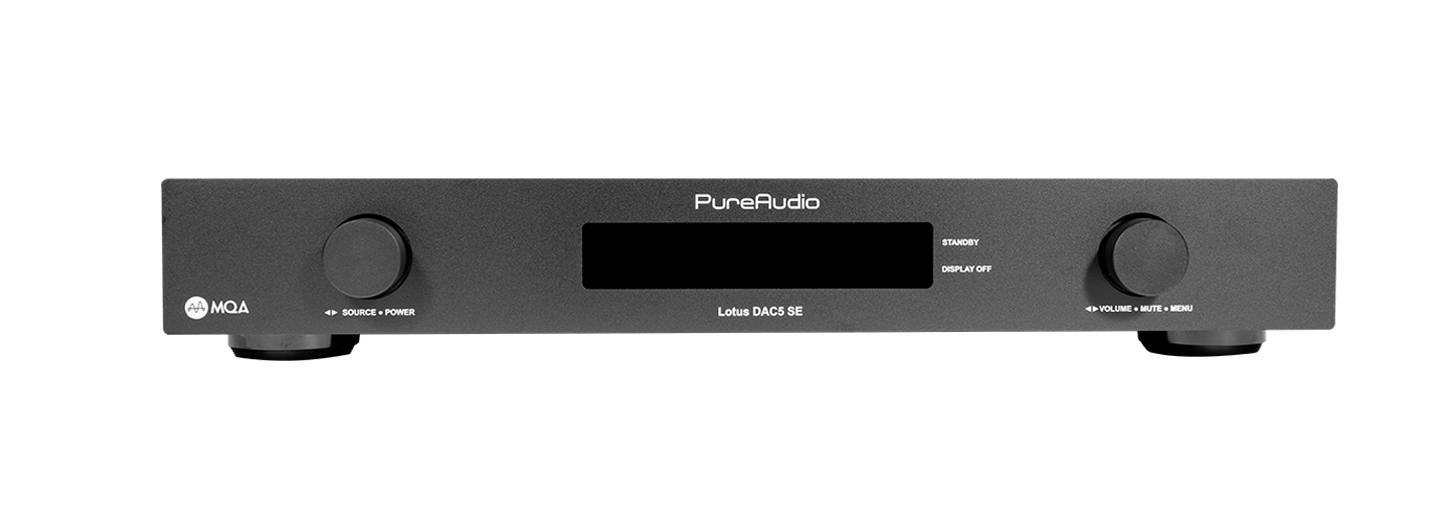

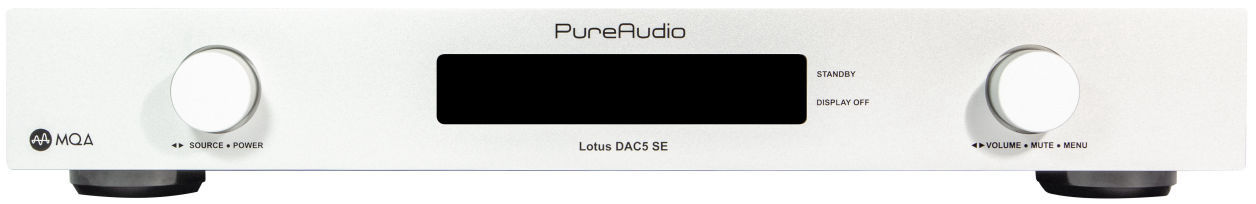

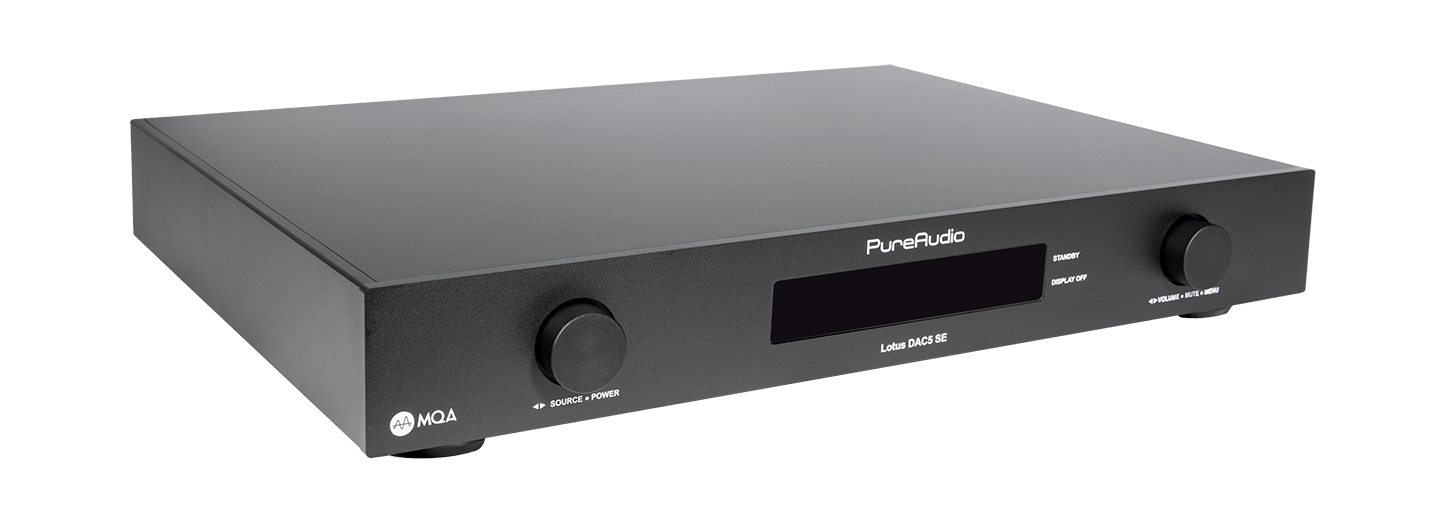

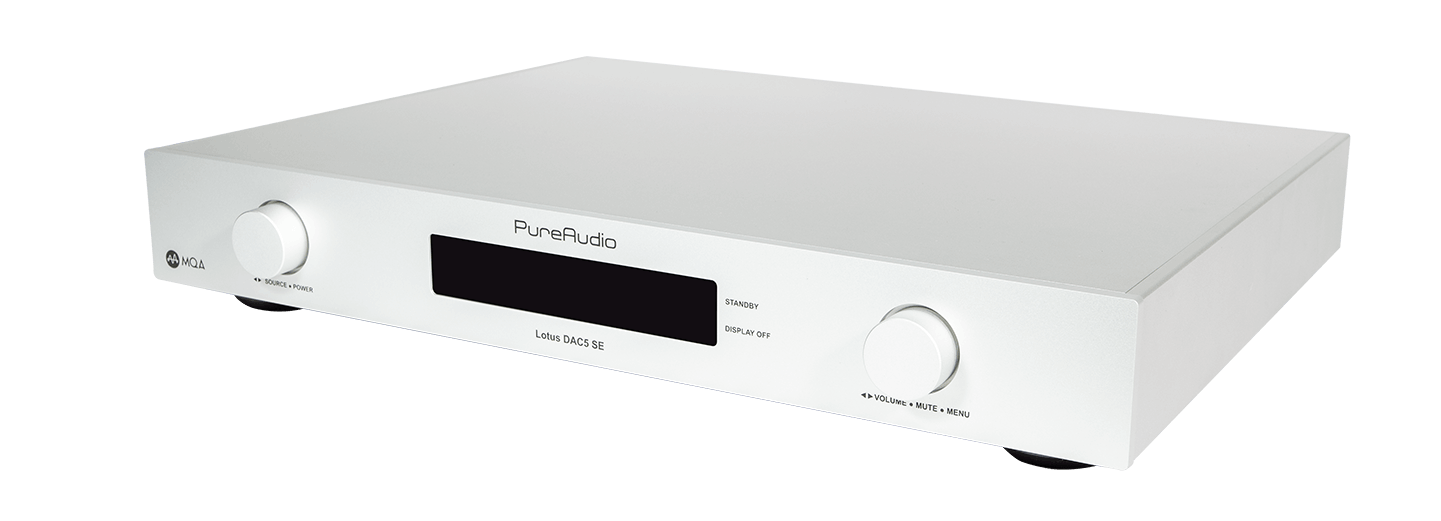

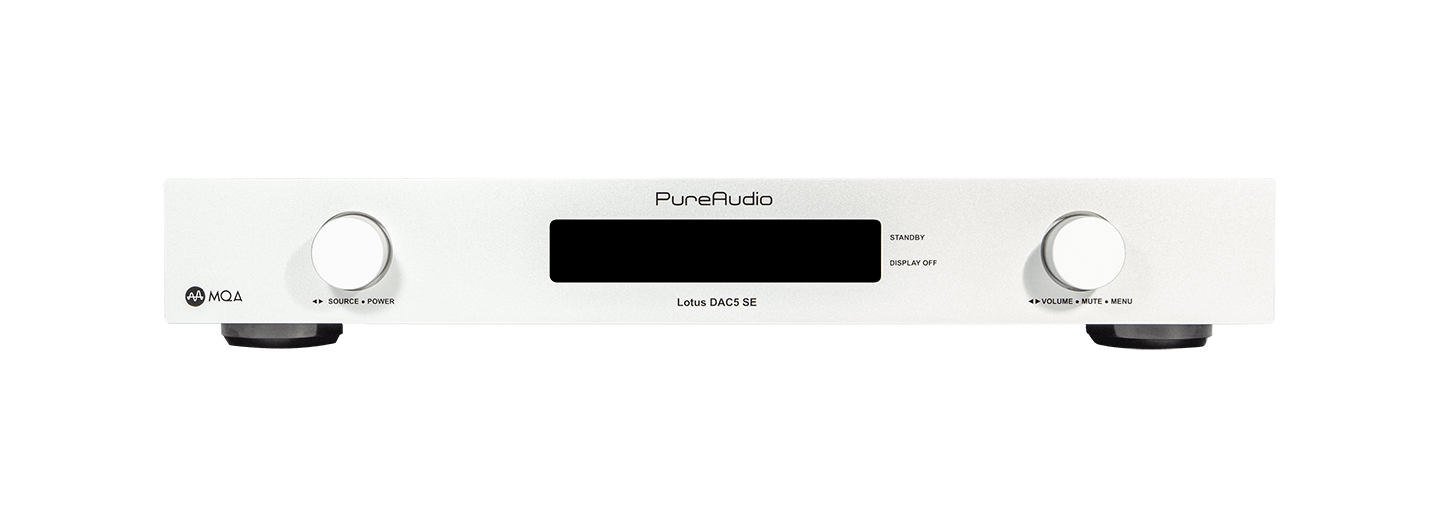

Continuing the design spirit of Lotus DAC5, DAC5 SE uses a dual-chip circuit and all inputs support MQA decoding, This brings more choices for music listening. Brand-new design one chip's is only responsible for one channel, Separate processing improves the separation between the two channels and a wider sound field, music details are richer. Use two low-noise transformers to separate power supply for digital circuits and analog circuits provide abundant current supply for the circuit. The new design of DAC5 SE will bring you a new feeling of music listening.
1. With hardware MQA full decoder, all inputs support MQA decoding.
2. Dual ES9038PRO D/A chip structure, showing excellent channel separation and sound field openness.
3. The dual transformer design separates the digital and analog power supplies independently, making the sound more pure.
4. Sampling frequency up - down conversion, listening to different frequencies brings different feelings to music.
5. Flexible volume control, the volume of each input can be adjusted independently.
6. Extremely simple design, all functions are completely controlled by the remote control.

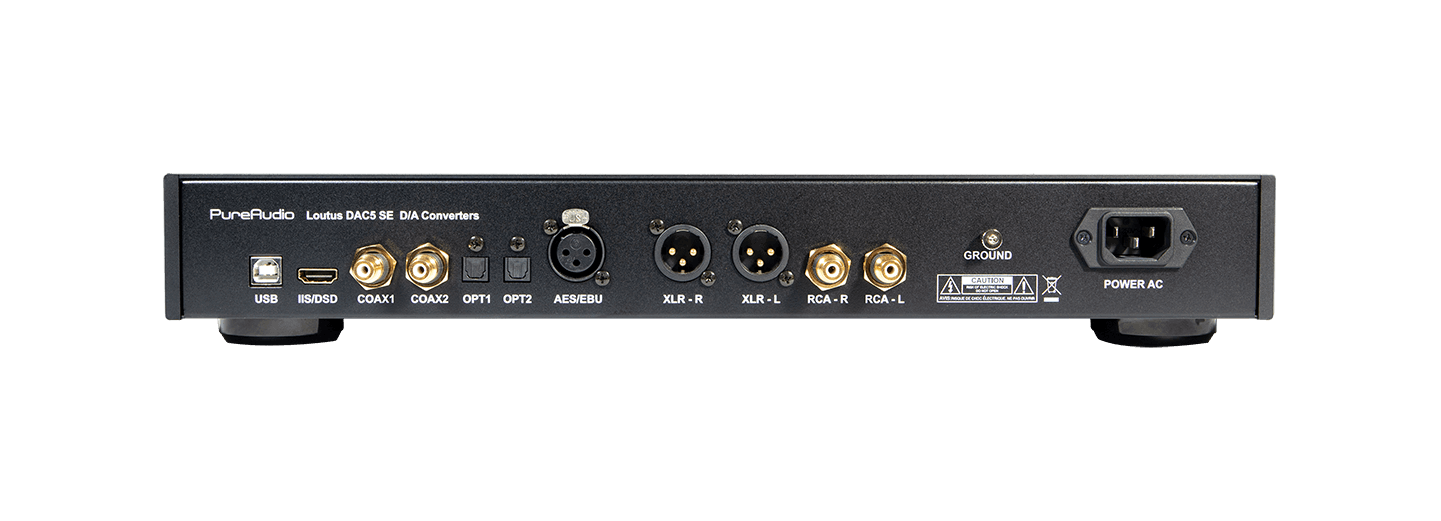

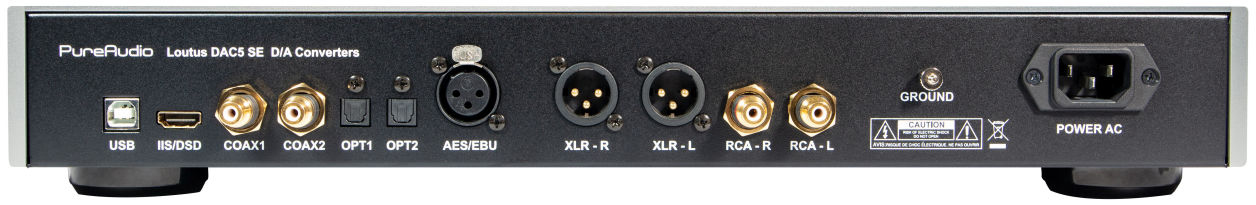

DIGITAL
• USB : Windows / Supports PCM 44.1KHz ~ 768KHz / DSD 512 and MQA.
• USB : MAC / Supports PCM 44.1KHz ~ 768KHz / DOP 256 and MQA.
• IIS/DSD : Supports PCM 44.1KHz ~ PCM 384KHz / DSD 256 and MQA.
• COAXIAL : Supports PCM 44.1KHz ~ 384KHz / DOP 64 / 128 and MQA.
• OPTICAL : Supports PCM 44.1KHz ~ 192KHz / DOP 64 and MQA.
• AES/EBU : Supports PCM 44.1KHz ~ 192KHz / DOP 64 and MQA.
NOTE : DOP ( DSD over PCM ).
ANALOG
‧ Frequency response : 20 Hz - 20 KHz / ±0.3 dB.
‧ SNR : > 110 dB.
‧ THD+N : < 0.0005%.
‧ Output Impedance : < 50 Ohm.
‧ 2 XLR balanced outputs : FIXED 0dB mode 8Vrms, FIXED - 6dB mode 4Vrms.
‧ 2 RCA unbalanced outputs : FIXED 0dB mode 4Vrms, FIXED - 6dB mode 2Vrms.
GENERAL
• Power Supply : AC voltage selector switch at the bottom of the unit, 115V or 230V.
• Dimensions [W x H x D] : 430 mm x 55 mm x 315 mm.
• Weight : 6.2 Kg
• Power consumption : 13.5W ( Standby under 0.9W )
USB DRIVER
• USB DRIVER VERSION 4.59.0 ( Wimdows 7 /8 / 10 )
• USB DRIVER VERSION 5.40.0 ( Wimdows 10 / 11 )
USER MANUAL
‧ Configuring Foobar2000 For DSD and MQA Playback V1.0
‧ Audirvana Plus for MQA V1.0
‧ USB Driver Installation Guide V1.0
‧ Lotus DAC5 SE User's Manual V1.2 ( English )
‧ Lotus DAC5 SE User's Manual V1.2 ( Chinese )
